700～2000nm High power cladding light eraser (CPS)

Name: 7002000nm High power cladding light eraser CPS
Brand: YOGEL
Price: 1 USD

Buy cheap 700～2000nm High power cladding light eraser (CPS) product

Brand Name : YOGEL

Model Number : 700～2000nm

Certification : ISO9000

Place of Origin : CHINA

MOQ : 1

Price : negotiate

Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 100 pieces per month

Packaging Details : Carton box

Wavelength (nm) : 700～2000nm

Connector type : FC/APC FC/UPC

Signal insertion loss (dB) : 0.05 (typical value)

Fiber type : Single-mode, polarization-maintaining, photonic crystal fiber, etc.

polarization : Random, or customised with bias

numerical aperture NA : 0.12

Processing power : 200 ~ 350 (bottom conduction cooling)

Contact Now

700～2000nm High power cladding light eraser (CPS)

The High-Power Cladding Power Striping (CPS) system is specifically engineered for high-power fiber lasers and amplifiers. This device effectively removes residual pump power, amplified spontaneous absorption (ASE), and escaped core modes from the inner cladding of dual-clad fibers, while minimizing signal power degradation and beam quality deterioration. It also enables efficient stripping of signal power reflected from the end face to the inner cladding.

Feature:

High power processing capacity for high stripping
High stripping efficiency and low signal loss
high stability

Application:

fibre laser
fibre amplifier
optical instrument

Specification:

project	Index
laser wavelength (nm)	700～2000
polarization	Random, or customised with bias
work pattern	continuation
Signal insertion loss (dB)	0.05 (typical value)
Tail fiber length (m)	1.0
Processing power	200 ~ 350 (bottom conduction cooling)
	600～2000 (glass tube)
Encapsulation size (mm)	150×15×12 (bottom conduction cooling)
	φ 3× L80 (glass tube)
working temperature (℃)	0～+75
storage temperature (℃)	-40～+85

Package information:

700～2000nm High power cladding light eraser (CPS)

Ordering Information:

1. Laser Wavelength: 700-2000nm
2. Polarization: Random; Polarization-Maintaining Custom
3. Pigtail Length: 1m; or other

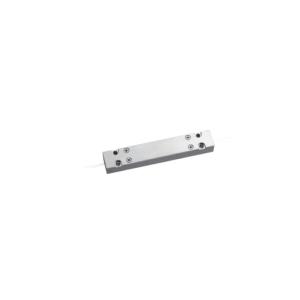

700～2000nm High power cladding light eraser (CPS) Images
