15mm Output 25020072mm 12 Port Fiber Termination Box

Name: 15mm Output 25020072mm 12 Port Fiber Termination Box
Brand: Yogel or OEM
Price: 1 USD

Buy cheap 15mm Output 250*200*72mm 12 Port Fiber Termination Box product

Brand Name : Yogel or OEM

Model Number : FDB-WS-12B

Certification : ISO9000 ,ROHS,CE

Place of Origin : Shanghai China

MOQ : 10

Price : Negotiate

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 5000 pcs/ month

Delivery Time : 3-5 days after despoit

Packaging Details : 20 piece/carton box

Product name : High quality fiber optic 12 port waterproof distribution termination box FTTH terminal box 12 core

Dimension(LxWxH) : 250*200*72mm

Installation : Wall/Pole mounting(Outdoor & Indoor)

Cable Entries : Supporting Uncut Mid-span

Max. Cable Diameter : Max. Input = φ15mm, Max. Output = φ15mm

Configuration : 12pcs SC & 12pcs Duplex LC adapter & 1x8 mini PLC

Contact Now

High quality fiber optic 12 port waterproof distribution termination box FTTH terminal box 12 core

Description

FDB-WS-12B fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the
feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,
storage and cable connection in one solid protection box

Features

* Easy to maintain and extend the capacity.
* Fiber bend radius control more than 40mm.
* Suitable for the fusion splice or mechanical splice.
* 1*8 Splitter can be installed as an option.
* Efficient cable management.
* 12 ports cable entrance for drop cable.

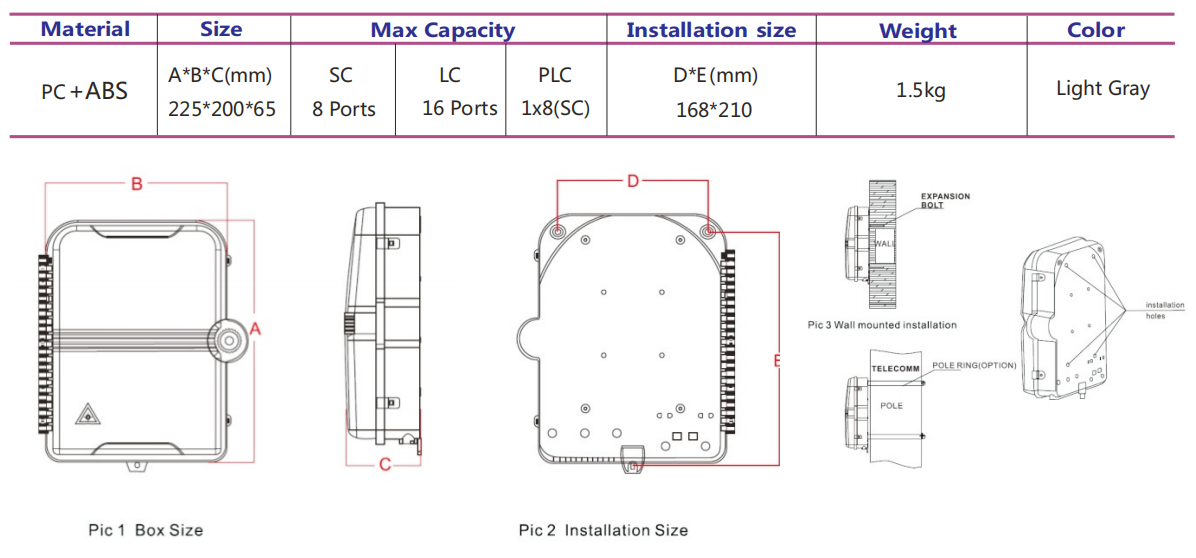

Configuartion

15mm Output 250*200*72mm 12 Port Fiber Termination Box

Datasheet

Environmental Requirement
Working Temperature	-40℃~+85℃
Relative humidity	≤85%(+30℃)
Atmospheric pressure	70KPa~106KPa
Main technical data
Insertion loss	0.2dB
UPC return loss	50dB
APC return loss	60dB
Life of insertion and extraction	1000times
Thunder-proof Technical Data
The grounding device is isolated with the cabinet, isolation resistance is no less than 2x104MΩ/500V(DC); IR≥2x104MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V

Dimension(LxWxH)mm	250X200X72mm
Fiber Count	12Cores
Installation	Wall mounting(outdoorindoor), Pole Mounting
Level of Protection	IP65
Cable Entries	Supporting Uncut
Max Cable Diameter	Max Input =φ15mm, Max output =2x3mm
Configuration	12pcs SC adapter and 12pcs Double LC and 1 pcs 1*8 Blockless PLC
Packing Information (For Reference Only)	GW:21.2Kg QTY:20PCS MEAS:500X450X400mm
