15mm Input IP65 24F Fiber Optic Termination Box

Name: 15mm Input IP65 24F Fiber Optic Termination Box
Brand: Yogel
Price: 1 USD

Brand Name : Yogel

Model Number : FDB-WG-ADT-24A

Certification : ISO9001

Place of Origin : Shanghai

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000pcs/month

Delivery Time : 3-7days

Packaging Details : Standard box with Carton

Product name : Fiber distribution box

Item Number : FDB-WG-ADT-24A

Dimension(LxWxH) : 320x240x100mm

Installation : Wall/Pole mounting(Outdoor & Indoor)

Cable Entries : Supporting Uncut Mid-span

Max. Cable Diameter : Max. Input = φ15mm, Max. Output = 3.1x2.0 Drop Cable

Configuration : 24pcs SC or 24pcs Duplex LC adapter & 1x16 mini PLC

Color : gray

Cores : 24F

Material : pc+abs

Protection level : IP65

Contact Now

FDB-WG-ADT-24A fiber access termination box distribution box with pigtail or splitter and adaptor

Description

FDB-WG-ADT-24A fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.

Features

* Water-proof design with IP-66 Protection level.

* Integrated with splice cassette and cable management rods.

* Manage fibers in a reasonable fiber radius condition.

* Easy to maintain and extend the capacity.

* Fiber bend radius control more than 40mm.

* Suitable for the fusion splice or mechanical splice.

* 1*8 and 1*16 Splitter can be installed as an option.

* Efficient cable management.

* 24 ports cable entrance for drop cable.

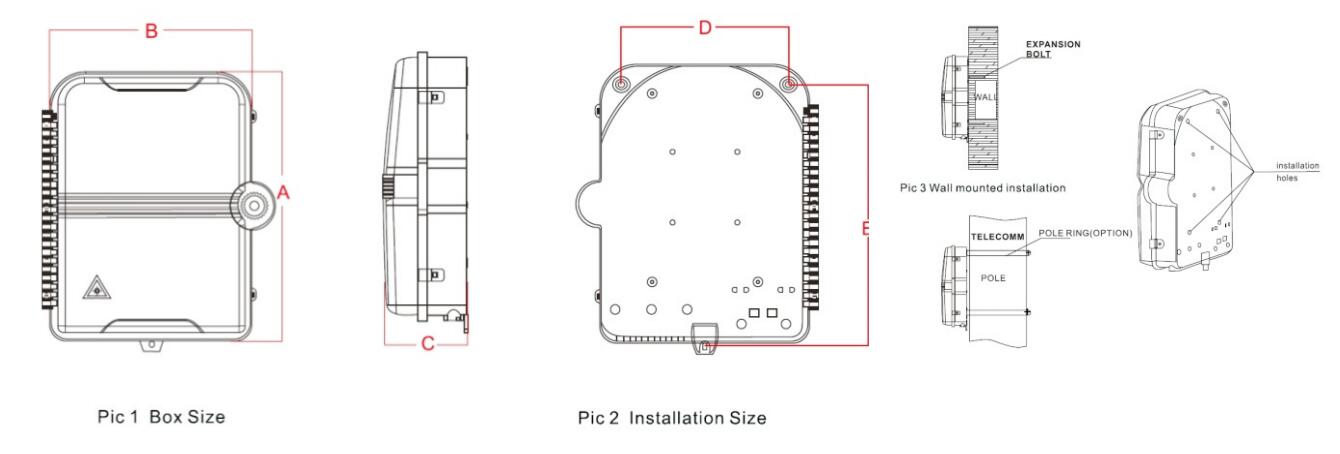

Configuration

Material	Size	Max Capacity			Installation size	Weight	Color
PC+ABS	ABC(mm) 320240100	SC 24 Ports	Box PLC 1x16(SC)	Tube PLC 1x8(SC)	DE(mm) 206274	1.5kg	Light Gray
